Name: Valve Guide 612600040113 for Sinotruk HOWO Shacman Weichai Yuchai YC6108G Deutz SDLG WD615 Engine Parts Truck Model HOWO
Brand: Jinan Carman International Trade Co., Ltd.
SKU: 612600040113
Price: 20.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Year: 2012-

Model: Shacman

OE NO.: 612600040113

Car Fitment: Shacman

Material: STEEL

Type: Valve Guide

Size: OEM

Reference NO.: 612600040113

Truck Model: Howo Shacman

Product Name: 612600040113 Valve Guide

Engine: WEICHAI

Application: Howo Heavy Truck

Quality: High-Quality

Packing: Carton

MOQ: 50PCS

Payment: T/T

Delivery Time: 3-7 Days

Color: Silver

SHIPPING WAYS: DHL . UPS . FEDEX . EMS . TNT

Port: QINGDAO

Highlight:

612600040113 weichai engine and accessories

wd615 weichai engine and accessories

Basic Infomation

Place of Origin: Shandong, China

Brand Name: CARRUCHI

Model Number: 612600040113

Payment & Shipping Terms

Supply Ability: 10000000 Acre/Acres per Day

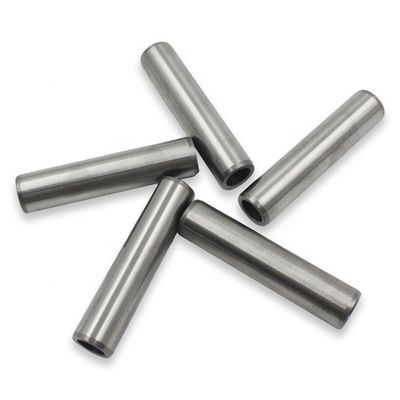

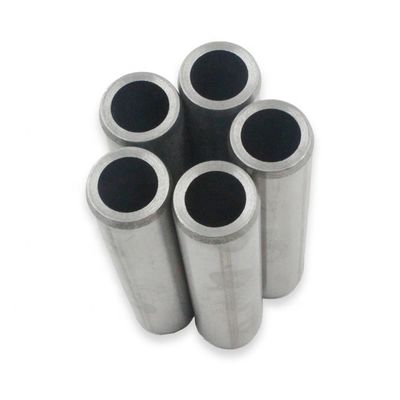

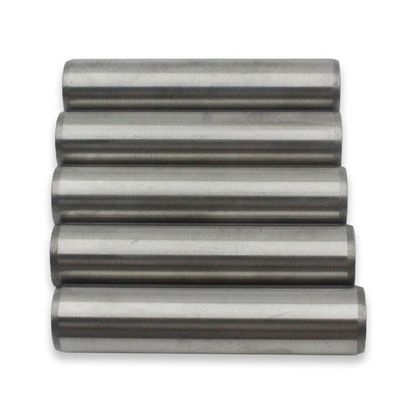

Gallery

Valve Guide 612600040113 for Sinotruk HOWO Shacman Weichai Yuchai YC6108G Deutz SDLG WD615 Engine Parts Truck Model HOWO

Product Description

612600040113 valve guide for Weichai yuchai yc6108g cummins Deutz SDLG WD615 engine parts

Product Description

The valve guide is the guiding device of the automobile engine valve. The valve guide guides the valve and transfers the heat on the valve stem to the cylinder head through the valve guide. The function of the valve guide is to guide the movement of the valve, ensure the reciprocating linear movement of the valve, make the valve and the valve seat ring fit correctly, and transfer the heat of the valve stem to the cylinder head. The working temperature of valve guide is also higher, about 200 ℃. When the valve stem moves in the guide pipe, it is only lubricated by the oil splashed from the valve train, so it is easy to wear. Therefore, the separate parts made of ductile iron or powder metallurgy materials with self sliding performance are often pressed into the valve guide seat hole on the cylinder head with certain interference to prevent falling off. In order to prevent the valve guide from loosening, some engines use snap ring to fix and position the guide. The lower part of the valve guide extends into the intake and exhaust passage. In order to prevent resistance to the air flow, the outer circle of the extension end is made into a cone. There is a clearance of 0.05-0.12mm between the valve guide and the valve stem, so that the valve stem can move freely in the guide.

612600040113 valve guide for Weichai yuchai yc6108g cummins Deutz SDLG WD615 engine parts

Specification

item	value
OE NO.	612600040113
Car Fitment	HOWO
Place of Origin	China
Brand Name	CARRUCHI
Material	STEEL
Type	valve guide
Size	OEM
Model Number	612600040113
Reference NO.	612600040113
Truck Model	howo shacman
Product Name	612600040113 valve guide
Engine	WEICHAI
Application	Howo Heavy Truck
Quality	High-Quality
Packing	Carton
MOQ	50PCS
Payment	T/T
Delivery time	3-7 Days
Color	Silver
SHIPPING WAYS	DHL . UPS . FEDEX . EMS . TNT

product usage

The car needs special tools to press in to replace the valve guide. Generally, the replacement of the valve guide in the repair shop is installed in the place where the engine boring cylinder is made. There are no tools that are not easy to install.

612600040113 valve guide for Weichai yuchai yc6108g cummins Deutz SDLG WD615 engine parts

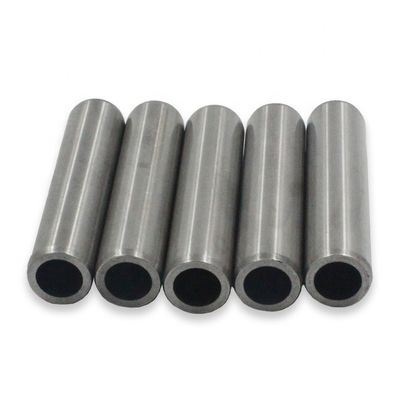

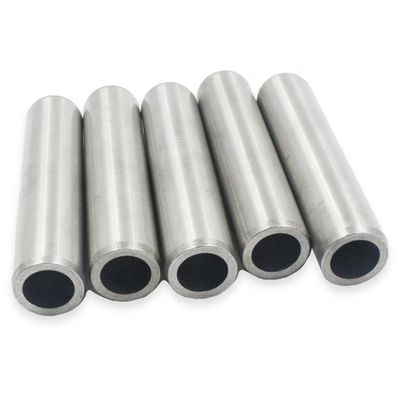

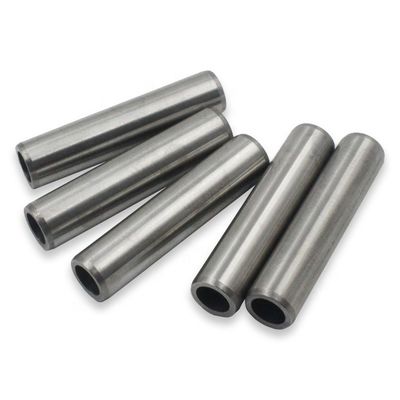

Details Images

Technical conditions of valve guide: according to the working conditions of valve guide, the material of valve guide must have good heat dissipation and wear resistance. ① Conduit material: carbon steel with hardness of 40-45hrc is generally selected. ② V-shaped arrangement relative to the cylinder head center line is adopted. This kind of arrangement can enlarge the middle water chamber of cylinder head and strengthen cooling. At the same time, it can make the design of combustion chamber more compact, the diameter of valve head larger, the exhaust more smooth and the intake more sufficient. ③ The interference of valve guide must be selected properly. If the interference is too small, the pipe will be loose and the oil will leak into the combustion chamber; Too much interference will cause the cylinder head to crack when it is pressed into the guide tube. Generally, the interference value is 0.027-0.045mm. ④ Press in the guide pipe: A. heat the cylinder head evenly to 80 ℃ ~ 100 ℃, and cool the valve guide pipe to - 40 ℃. B. Quickly install the punch and press the guide pipe into the guide pipe hole on the cylinder head. When the upper end of the guide pipe is exposed to the inner surface of the basin groove of the cylinder head, it must be extended according to the factory specified value. Do not extend too much, otherwise it will affect the work of valve spring. When the length of the catheter is fixed, the upper end of the catheter extends too short, which means that the lower end of the catheter may extend into the airway and affect the intake and exhaust. C. After the pipe is pressed, ream the inner hole according to the regulations, and the roughness is ral. 6 ~ 0. 8 μ m。 The roughness should not be high, because there is no lubricating oil in the clearance between the guide pipe and the valve. In order to prevent the oil from leaking into the combustion chamber from the clearance between the guide hole and the valve, the valve oil seal should be installed on the upper end of the guide pipe.

612600040113 valve guide for Weichai yuchai yc6108g cummins Deutz SDLG WD615 engine parts

Packing & Delivery

details1. Our packing uses export wooden cases, plastic boxes, cartons or pallets. All the package are very strong, the wooden box is firmly bound, the package is covered with a waterproof film to prevent water or damage during transportation.Before packing, we
can also stick corresponding labels and shipping marks according to your needs. All our goods are well packed.
2. According to the quantity, we can use express delivery, air transportation or ocean transportation, automobile transportation, railway transportation, etc. we have our own freight forwarders, and we can also use the designated freight forwarders of customers, which can meet various delivery requirements of customers, such as EXW, FOB, CIF, etc.It can also be exported from many
ports in China.
Such as Qingdao port, Ningbo port, Lianyungang port, Tianjin port, Suifenhe River and Alashankou in China.
3. We can also send the goods by express if the customers have less goods. According to customer's request, we can use express
such as DHL, TNT, EMS, FedEx, etc. the delivery time is 3-7. Safe, fast and convenient. It's also a good choice for you.

612600040113 valve guide for Weichai yuchai yc6108g cummins Deutz SDLG WD615 engine parts

Company Profile

Jinan carman International Trade Co., Ltd. was established in 2003. Its main business is the export of truck parts to the Russian,Europe and Southeast Asia market.like shacman ,sinoturk ,faw weichai cummins ZF ,cummins XCMG LGMG JCB .DCEC,isuzu caterpiller .komatsu yanmar spare parts .The company has its own warehouse in Jinan with an area of 2000 square meters.and have a
large stock .And Ability to quickly collect and deliver goods.Our main business is SINOTRUK, shacman , FAW, Cummins and all kinds of construction machinery accessories. We always adhere to the quality of products as the core, to serve customers as the task.Hope to be able to better
communicate with friends from all over the world, and through this communication, promote the development of cultural exchanges and economic exchanges between the two sides.

Certifications

auto parts are an important factor to support the healthy development of the automobile industry, especially heavy trucks need to have higher requirements for different environments and different roads. The wear resistance, durability and tenacity of parts
will have a direct impact on the safety of the vehicle itself and the driver. We have been committed to building excellent suppliers in the automobile industry for many years, providing high-quality vehicle and auto parts services for new and old customers. Our company was founded in 2013,Warehouse inventory is huge, and many kinds to meet your various needs. The company has
been adhering to the quality as the core,to serve customers as their responsibility, strict withthemselves, has been China and the
world a lot of quality inspection,china heavy truck spare parts

612600040113 valve guide for Weichai yuchai yc6108g cummins Deutz SDLG WD615 engine parts

FAQ

1. who are we?
We are based in Shandong, China, start from 2013,sell to Eastern Asia(75.00%),Northern Europe(11.00%),Africa(4.00%),Southern Europe(3.00%),South Asia(2.00%),Southeast Asia(2.00%),Western Europe(2.00%),North America(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Auto parts,Truck parts,Engine parts,Parts for Cummins,Parts for XCMG

4. why should you buy from us not from other suppliers?
Jinan Carman International Trade Co., Ltd. is located in Jinan city, the capital of Shandong Province. Main products are heavy truck accessories, light truck parts, engineering machinery parts and so on. We have perfect service system.

5. what services can we provide?
Accepted Delivery Terms: 3-5 DAYS
Accepted Payment Currency:T/T
Accepted Payment Type: T/T
Language Spoken:ENGLISH
