HOWO Shacman Engine Cooling Fan For Sitrak C7H T7H C9H T5G LGMG MT95
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | HOWO |
| Model Number | 202V06600-7056 |
| Minimum Order Quantity | 10 acres |
| Price | CN¥3,558.48/acres 10-19 acres |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| OE NO. | 202V06600-7056 | Purpose | For Replace/repair |
|---|---|---|---|
| Condition | New | Year | 2005- |
| Model | Howo | Car Fitment | SINOTRUK (CNHTC) |
| Type | FAN | Warranty | 3 Months |
| Size | Oem Stand Size | Car Model | Howo Shacman Faw |
| Product Name | 202V06600-7056 Howo MC13 Cooling FAN BLADE | Application | Howo C7H Lgmg MT95 |
| Material | Plastic + Steel | Color | White |
| MOQ | 5 PCS | Quality | 100%tested |
| Delivery Time | 3-7 Days | Certificate | ISO9001:2008 |
| Payment | T/T | Engine | MC13 HOWO |
| Highlight | Shacman Engine Cooling Fan,202V06600-7056 Engine Cooling Fan,202V06600-7056 Mining Truck Parts |
||
Product Description

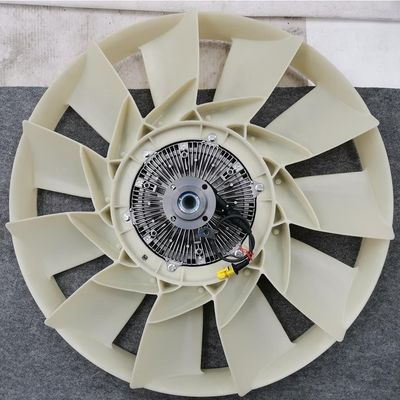

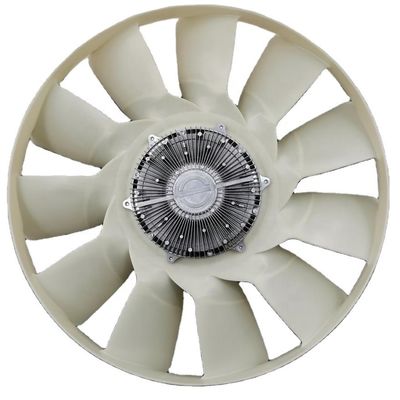

4110702721007 202V06600-7056 770 MM FAN BLADE for HOWO SITRAK C7H T7H MC13 LGMG MT95 mining truck engine parts fan
Product Description
Silicone oil fan clutch uses silicone oil as medium and uses silicone oil shear viscosity to transmit torque. The speed of the fan is designed to ensure that the engine does not overheat under the worst service conditions. Therefore, during the normal driving process of the vehicle, the speed of the fan should be controlled within an appropriate range, so as to reduce the noise and improve the economy of the engine. For an engine driven fan, the fan clutch is usually used to control its speed. The clutch is sealed with viscous fluid (silicone oil) and transmits torque by its shear viscosity. A bimetallic sheet is installed in front of the fan to sense the air temperature passing through the radiator, so as to control the amount of silicone oil in the working chamber of the fan. Only when necessary can the torque be transmitted to make the fan rotate. In the initial stage, only the switch type silicone oil fan clutch that cuts off and turns on the rotating driving force at high temperature and low temperature. With the change of vehicle requirements for air volume and noise characteristics, the involute silicone oil fan clutch with more refined temperature speed five-stage control is the development direction in the future.
4110702721007 202V06600-7056 770 MM FAN BLADE for HOWO SITRAK C7H T7H MC13 LGMG MT95 mining truck engine parts fan
Specification
|
item
|
value
|
|
OE NO.
|
202V06600-7056
|
|
Type
|
FAN
|
|
Warranty
|
3 months
|
|
Place of Origin
|
China
|
|
Size
|
oem stand size
|
|
Car Model
|
HOWO MC13 LGMG
|
|
Product Name
|
202V06600-7056 Fan blade
|
|
Application
|
HOWO MC13 MC11 ENGINE
|
|
Material
|
Plastic + steel
|
|
Color
|
White
|
|
MOQ
|
5 PCS
|
|
Quality
|
100%tested
|
|
Delivery time
|
3-7 Days
|
|
Certificate
|
ISO9001:2008
|
|
Payment
|
T/T
|
|
Package
|
Package
|
4110702721007 202V06600-7056 770 MM FAN BLADE for HOWO SITRAK C7H T7H MC13 LGMG MT95 mining truck engine parts fan
Details Images

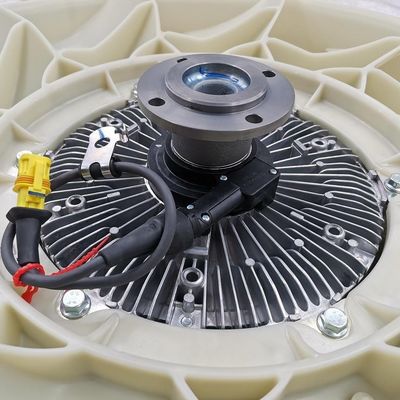

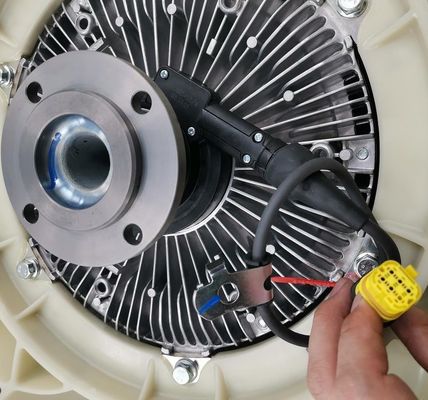

Silicone oil fan clutch: 1. Silicone oil is used as the medium to transfer torque by using the high viscosity of silicone oil. The temperature of the air behind the radiator is used to automatically control the separation and combination of the fan clutch through the temperature sensor; 2. When the temperature is low, the silicone oil does not flow, the fan clutch is separated, and the fan speed slows down, basically idling. At high temperatures, the viscosity of the silicone oil engages the fan clutch. Therefore, the fan and the water pump shaft rotate together to adjust the engine temperature;
3.The fan blade of our company's fan adopts a high-precision mold to ensure that the size of the fan is the same as that of the original fan. The fan blade is made of high-quality plastic, light, fast speed and high temperature resistance. It can be used for a long time. The connecting part of fan and silicone oil clutch is made of alloy material, which is wear-resistant, high temperature resistant and fast heat dissipation. We always insist on producing and selling high-quality fan clutch.
4110702721007 202V06600-7056 770 MM FAN BLADE for HOWO SITRAK C7H T7H MC13 LGMG MT95 mining truck engine parts fan
Packing & Delivery
details1. Our packing uses export wooden cases, plastic boxes, cartons or pallets. All the package are very strong, the wooden box
is firmly bound, the package is covered with a waterproof film to prevent water or damage during transportation.Before packing, we
can also stick corresponding labels and shipping marks according to your needs. All our goods are well packed.
2. According to the
quantity, we can use express delivery, air transportation or ocean transportation, automobile transportation, railway
transportation, etc. we have our own freight forwarders, and we can also use the designated freight forwarders of customers, which
can meet various delivery requirements of customers, such as EXW, FOB, CIF, etc.It can also be exported from many ports in China.
Such as Qingdao port, Ningbo port, Lianyungang port, Tianjin port, Suifenhe River and Alashankou in China.
3. We can also send the goods by express if the customers have less goods. According to customer's request, we can use express
such as DHL, TNT, EMS, FedEx, etc. the delivery time is 3-7. Safe, fast and convenient. It's also a good choice for you.
is firmly bound, the package is covered with a waterproof film to prevent water or damage during transportation.Before packing, we
can also stick corresponding labels and shipping marks according to your needs. All our goods are well packed.
2. According to the
quantity, we can use express delivery, air transportation or ocean transportation, automobile transportation, railway
transportation, etc. we have our own freight forwarders, and we can also use the designated freight forwarders of customers, which
can meet various delivery requirements of customers, such as EXW, FOB, CIF, etc.It can also be exported from many ports in China.
Such as Qingdao port, Ningbo port, Lianyungang port, Tianjin port, Suifenhe River and Alashankou in China.
3. We can also send the goods by express if the customers have less goods. According to customer's request, we can use express
such as DHL, TNT, EMS, FedEx, etc. the delivery time is 3-7. Safe, fast and convenient. It's also a good choice for you.
